Music Hall analogue a3 phono preamp

Music Hall analogue a3 phono amplifier

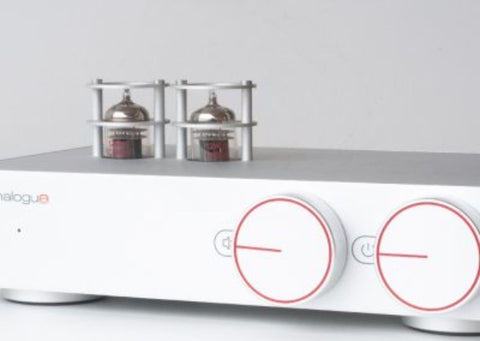

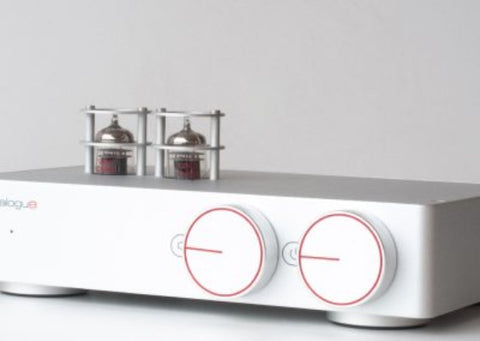

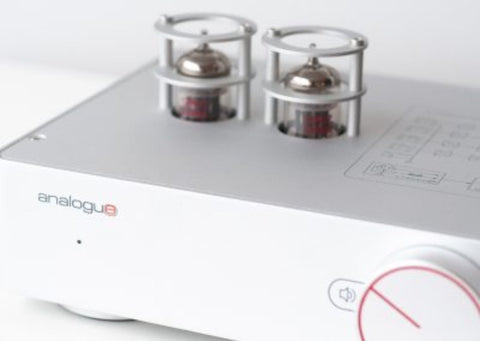

A SOLID YET MUSICAL PHONO PREAMP DESIGNED AND BUILT AROUND 2 VISIBLE 12AU7 MEDIUM-GAIN DUAL TRIODE TUBES—VALVES KNOWN FOR THEIR COMBINATION OF WARMTH, SPEED, AND DETAIL.

form and function

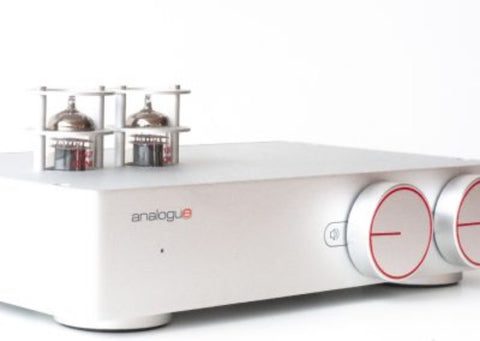

Your phono amp no longer needs to be relegated to a tiny box aside your component stack; at 10” wide, 7” deep, and weighing 6 pounds, the a3 is a substantial component, equipped with electronics that are on par with the best rack-size phono amplifiers.

an emphasis on sonics

As with anything music hall does, the analogue a3 was designed in the service of sound. From the substantial aluminum alloy chassis to the careful selection of internal components, nothing was spared—nor added—for any reason but to maintain signal purity.

feature list

ultra quiet MM/MC phono amp

gold-plated RCA inputs and outputs

silky smooth high-grade Alps “blue velvet” volume control

solid alloy construction

excellent RIAA linearity

elegant design

vibration damping feet

packed in a sturdy flight case

technical specifications

THD:	<0.01 % (MM)/ <0.05% (MC)
frequency response:	20Hz to 20KHz/±0.3dB
input impedance:	MC -100 Ohms/470pF, MM -47k Ohms/l00pF
phono gain:	MC-60dB, MM-40dB, @lKHz
vacuum tube preamplifier gain:	6dB
s/n ratio:	MC -78dB, MM -80dB

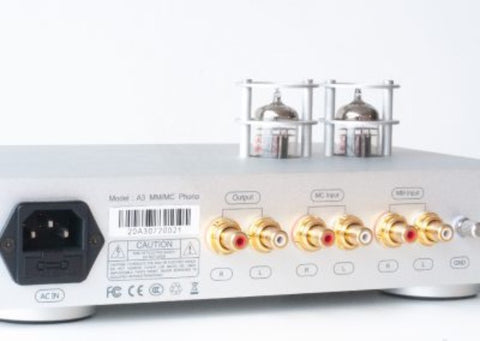

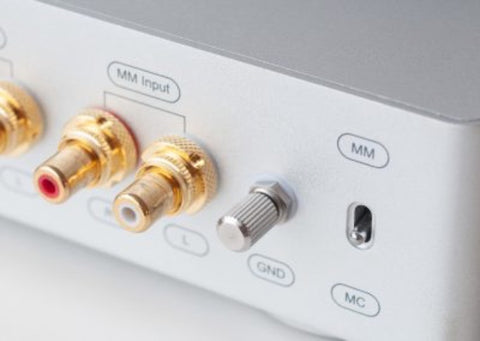

phono input:	1 x MC, 1 x MM
audio output:	1 x RCA
power input:	AC 115V/60Hz
rated power consumption:	20W
dimensions:	10 x 7 x 3.6 in 256 x 180 x 92 mm (WxDxH)
vacuum tube model:	12AU7
component weight:	6lbs / 2.7kg
package weight:	11lbs / 5kg
