speed control

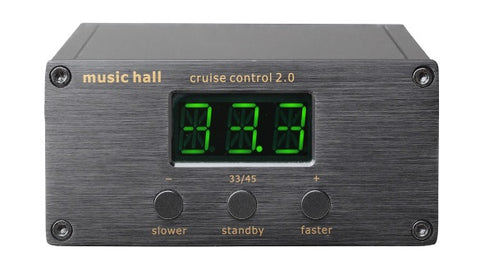

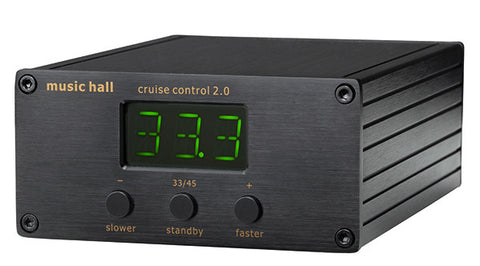

The cruise control 2.0 will provide speed control for music hall turntables with an AC synchronous motor, many pro-ject models, and turntables with 120v AC synchronous motor.
—
The cruise control works with the music hall 2.2, 5.1, and 7.1 series turntables.





feature list

• nominal speeds 33.3 and 45 rpm (optional 78 rpm w/pulley)
• quartz oscillator speed stability 0.0001%
• pitch control 20 step/0.1 rpm

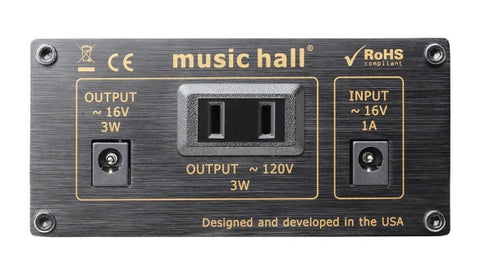

• turntable connection 16V/AC (3W power consumption max.)
• 120V/AC (3W power consumption max.)
• outboard power supply 16V/1.000mA AC

technical specifications

• w4.2 x d6 x h2.1 in.
• 2 lbs. pkg.

The cruise control 2.0 will provide speed control for music hall turntables with an AC synchronous motor, many pro-ject models, and turntables with 120v AC synchronous motor. The cruise control works with the music hall 2.2, 5.1, and 7.1 series turntables. Please consult your dealer for a full list.



Removing the platter and moving the belt from one pulley to the next is no longer required. The quartz-locked speed control provides unmatched speed stability to within ±0.0001% deviation.

(NOTE: the turntable must have an ac synchronous motor. *Does not work with the x.3 range of music hall turntables as they have dc motors.)

Used with the appropriate pulley and cartridge, it also permits the replay of 78 rpm records. The replay speed can be increased and decreased in twenty steps of 0.1 rpm. The quartz lock provides perfect speed control.
