Music Hall mmf-2.3se turntable

Music Hall mmf-2.3se turntable

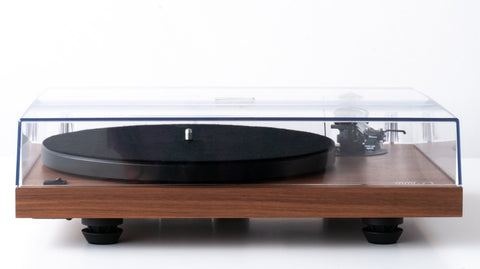

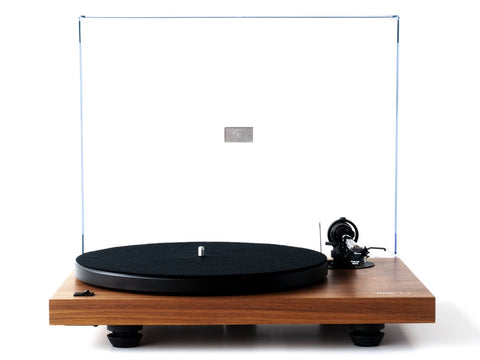

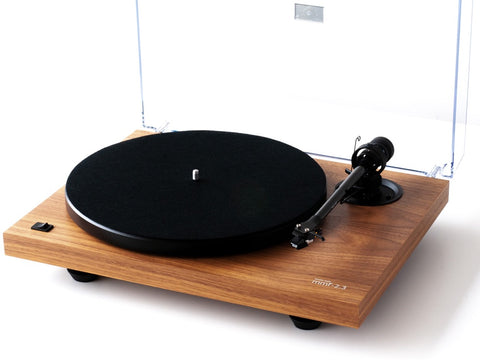

THE MUSIC HALL MMF-2.3 SPECIAL EDITION TURNTABLE IS A 2-SPEED BELT DRIVEN AUDIOPHILE TURNTABLE WITH SPECIAL ROSENUT REAL WOOD VENEER FINISH.

focus on components

Constructed using high quality components, the mmf-2.3se has been simplified to focus on the critical components: bearing, motor, and tonearm.

—
features touch button electronic speed control

the complete package

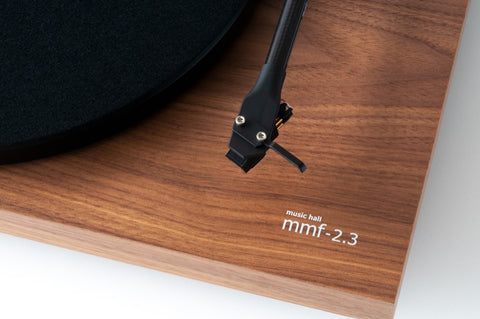

The mmf-2.3se comes complete with a tonearm and music hall spirit cartridge precision mounted.


feature list



  • gorgeous and classic looking rosenut real wood veneer finish
  • electronic speed control for easy speed changes from 33 1/3 to 45rpm
  • special vibration damping adjustable feet
  • custom carbon fiber tonearm for superb tracking ability
  • tonearm features a 4-point gimbal bearing assembly using ultra-precision ABEC bearings
  • fully adjustable VTA, azimuth, and dampened arm lift mechanism
  • low noise fully manual belt-drive design
  • separately isolated DC synchronous motor for superior speed stability

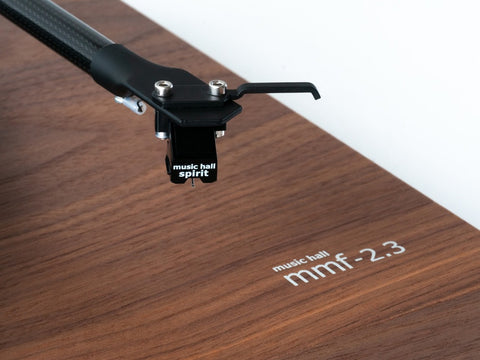

  • Music Hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
  • the cartridge supplied is properly aligned and mounted
  • high precision stainless steel and bronze main-bearing assembly for quiet fluid operation
  • high quality gold RCA connectors with detachable phono cable
  • full-size alloy platter and felt mat
  • excellent instruction manual
  • quick and easy to assemble
  • dust cover and 45 rpm adaptor

specifications

power supply 15V / 0-0.8mA DC
universal power supply
power connection 100 – 240 Volt
50 or 60 Hz
standby power consumption < 1 W
speeds 33 1/3 rpm
(manual change to 45 rpm)
wow and flutter ± 0.10 %
speed deviation ± 0.80%
effective tonearm length 8.6 in. (218.5 mm)
effective arm mass 7.0 g
overhang 18.5 mm
product dimensions w17″ x d13″ x h4.5″
weight 17 lbs. pkg.
