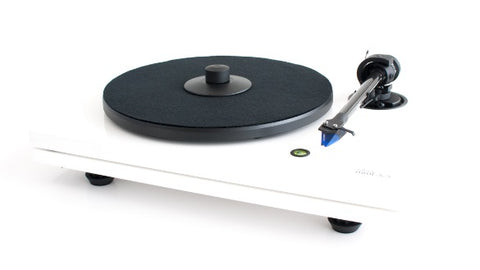

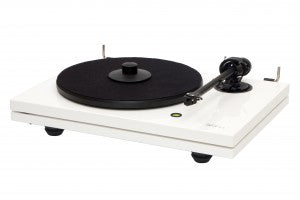

Music Hall MMF-5.3WH Turntable
THE MUSIC HALL MMF-5.3WH TURNTABLE IS A 2-SPEED BELT DRIVEN AUDIOPHILE TURNTABLE EMPLOYING THE UNIQUE DUAL-PLINTH CONSTRUCTION ORIGINATED BY MUSIC HALL.
The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform.
a complete package
Viso-elastic cones separate the two platforms and provide vibration damping.
The mmf-5.3 comes complete with
an Ortofon 2m Blue cartridge.
- music hall’s unique dual-plinth construction
- gorgeous high-gloss white lacquer finish
- top tier 9” carbon fiber tonearm
- fully adjustable VTA, azimuth, and dampened arm lift mechanism
- counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
- DC synchronous motor for superior speed stability, separately isolated on the lower platform
- two-speed stepped motor pulley for 33 1/3 and 45 rpm
- Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus ($236 value)
- the cartridge supplied is properly aligned and mounted
- precision stainless steel main bearing sheathed in Teflon® for noise-free fluid operation
- alloy platter with soft felt mat screw-on record clamp
- high quality gold RCA connectors
- detachable phono cable
- special vibration damping adjustable feet
- built-in round spirit level for proper leveling
- low noise fully manual belt-drive design
- excellent instruction manual and easy assembly
- dust cover and 45 rpm adaptor included
power supply 15V / 0-0.8mA DC
universal power supply
power connection 100 – 240 Volt
50 or 60 Hz
standby power consumption < 1 W speeds 33 1⁄3 rpm
(manual change to 45 rpm)
wow and flutter ± 0.10 % speed deviation ± 0.80% effective tonearm length 9 in. (230 mm) tonearm weight 250 g (without counterweight) effective tonearm mass 8.5 g overhang 18 mm product dimensions w18.25” x d13.25” x h5.5” 24 lbs. pkg.
The Ortofon 2M Series is designed for precise and accurate retrieval of the information in the record groove.
The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.
2M means MM, which is the abbreviation for moving magnet.
Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.
2M BLUE FEATURES:
- An improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
- Nude Elliptical diamond and split pole pins with a copper wire
- Adds more dynamics and resolution, sounds more open and reproduces more details than 2M Red
The 2M Series provides excellent compatibility when used with a wide variety of phono preamps.
