Music Hall mmf-9.3se walnut turntable
Music Hall mmf-9.3se walnut turntable

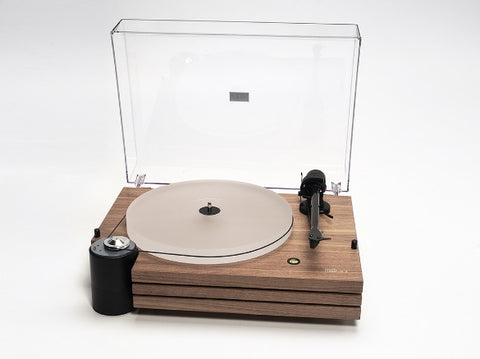

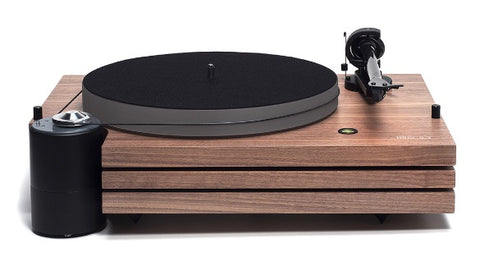

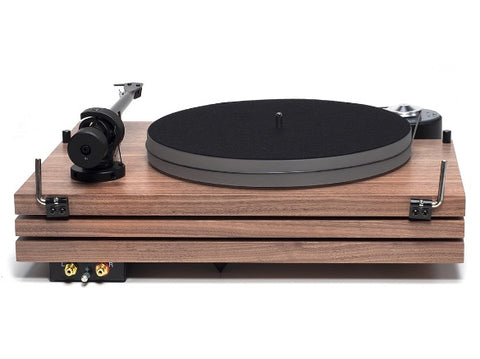

THE MUSIC HALL MMF-9.3 WALNUT TURNTABLE IS A TWO SPEED, BELT DRIVEN AUDIOPHILE TURNTABLE EMPLOYING THE UNIQUE TRIPLE PLINTH CONSTRUCTION ORIGINATED BY MUSIC HALL. IT FEATURES A GORGEOUS AND CLASSIC-LOOKING WALNUT REAL WOOD VENEER FINISH.
The distinctive design isolates the critical sound reproducing components: platter, main bearing, tonearm, and cartridge, on the top platform, from the adjustable tip-toe feet and wiring, which are mounted on the bottom platform. The motor and speed controls are isolated on their own vibration damping base and completely decoupled from the turntable. Sorbothane hemispheres separate each of the three platforms and provide additional suspension and vibration damping.
our penultimate turntable
The mmf-9.3 walnut comes in a real wood walnut veneer finish and is available with or without a Goldring Eroica LX cartridge.
- music hall’s unique triple plinth construction
- classic-looking walnut real wood veneer finish

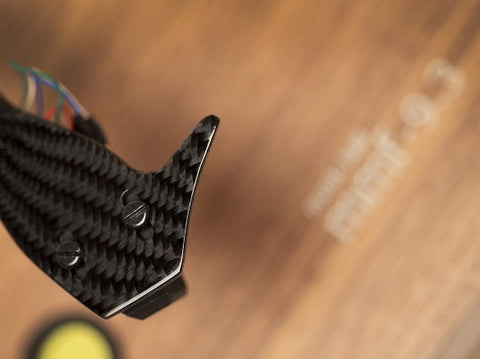

- one-piece full carbon fiber tonearm
- counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
- completely isolated/decoupled DC motor with 33 1⁄3 and 45 rpm speed controls located in the front left corner of the turntable, thus canceling any potential vibration from the motor/belt to the cartridge
- motor sits on its own resonance damping puck
- optional Goldring Eroica LX low-output moving-coil cartridge with Gyger II line contact stylus ($795 value)
- the cartridge supplied is properly aligned and mounted
- inverted ceramic main bearing for super quiet, fluid operation
- non resonant, 1” thick acrylic platter
- soft felt platter mat
- high quality gold RCA connectors and detachable phono cable
- adjustable tip toe feet with anti scratch cups
- low noise fully manual belt drive design

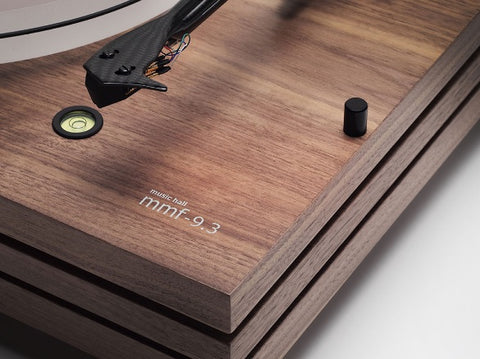

- built-in round spirit level for proper leveling

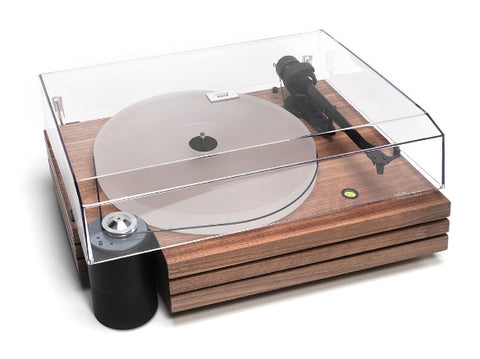

- dust cover and 45 rpm adaptor included
- excellent instruction manual and easy assembly
power supply 15V / 0-0.8mA DC
universal power supply
power connection 100 – 240 Volt
50 or 60 Hz
standby power consumption < 1 W speeds 33 1⁄3 & 45 rpm electronic speed change wow and flutter ± 0.10 % speed deviation ± 0.06% rumble max > – 73 db effective tonearm length 9 in. (230 mm) tonearm weight 250 g (without counterweight) effective tonearm mass 8.5 g overhang 18 mm product specifications w18.25″ x d13.25″ x h7.25″ weight 40 lbs. pkg.

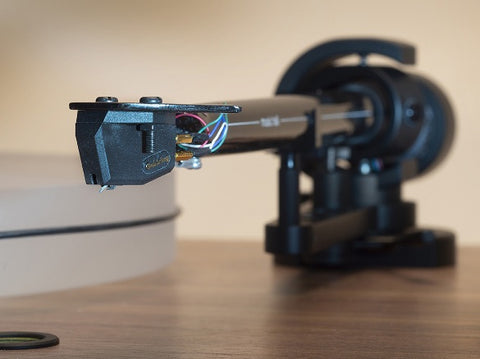

Goldring Eroica LX
The Eroica LX is a true audiophile moving coil cartridge which features an advanced pole shoe design using a powerful rare earth Neodymium magnet.
This unique construction allows a shortened magnetic path, which helps reduce the amount of iron in the record cartridge, keeping the weight down to just 5.5 g. Rigidity is also of prime importance and the Pocan body of the cartridge enables it to be clamped solidly to the headshell, keeping energy losses to an absolute minimum. This cartridge uses a Gyger II line contact stylus with a low output which means it must be used with an amplifier which features a dedicated moving coil phono input.
The Eroica LX offers an exceptionally high standard of performance and reliability.
Frequency Response 20 Hz – 22 kHz 2 dB Channel Balance within 1 dB @ 1 kHz Channel Separation better than 25 dB @ 1 kHz Sensitivity 0.5mV 1dB, 1kHz @ 5 cm/sec Static Compliance 30 mm/N Dynamic Compliance @ 10 Hz 18 mm/N Equivalent tip mass 0.35 mg Vertical Tracking Angle 24° Stylus Radius Gyger II Stylus Type Non-Replaceable Load Resistance 100 Ω Load Capacitance 100 – 1000 pF Internal Inductance 12 uH Internal Resistance 8 Ω Cartridge Mass 5.5 g Cartridge Mass (inc fixings) 6.6 g Fixing Centre 0.5″ (12.7 mm) Playing Weight 1.5 – 2.0 g (1.7 g nom.)
