Gold Note P-1000 MK II Deluxe Preamplifier

A FULL-FUNCTION CLASS A AUDIO PREAMPLIFIER. FOR REAL MUSIC LOVERS

PERFORMANCE TECHNOLOGY

Designed for High-End audio systems, the P-1000 MkII is an innovative class A line preamplifier powered by a new proprietary Six Gain Stage Ultra-Balanced design featuring relays and optical ALPS Encoder volume control. The very best of audio technology is applied to deliver an outstanding musical experience, with incredibly low distortion and extended linear bandwidth.
The P-1000 MkII features a design with three independent linear power supplies and 8 stereo inputs: 4 fully balanced XLR and 4 RCA. In addition, it also offers plenty of advanced functions: Mono/Stereo selection, Left/ Right channel swap, Absolute Phase swap, Booster technology, and fine Left/ Right balance.

P-1000 MKII DELUXE

The P-1000 MkII DELUXE features military-grade anti-noise coils and capacitors on the six output stages that are also clamped into place with custom copper clips.

TOTAL CONTROL

To play old recordings most faithfully, the preamplifier can be set in mono, and it allows for Left/ Right channel swap making it easy to reproduce inverted recordings. The absolute phase swap (0°/180°) can be useful when integrating the preamp into your system.
The Booster technology is designed to help you drive speakers that require extra power, providing greater energy in a very specific range of low frequencies – the feature is completely bypassed when set to OFF.
The large colour display of the preamp shows all functions and allows for quick and precise fine adjustments, whether using the SKC knob or the IR remote control, making this preamplifier easy to use.

UPGRADES

The P-1000 MkII can be equipped with dedicated external units to enhance the performance even further: the TUBE-1012 and TUBE-1006, external class A tube output stages, and the PSU-1250 and PSU-1000 – super inductive external power supply.

THE POWER AMPLIFIER TO MATCH YOUR PREAMP

The PA-1175 is a refined and musical power amplifier, designed to work in perfect synergy with the P-1000 MkII. And with the adjustable damping factor, it can drive all kinds of loudspeakers while delivering natural sound.

TECHNICAL SPECIFICATIONS

FREQUENCY RESPONSE

2Hz – 200kHz @ ± 3dB

THD (TOTAL HARMONIC DISTORTION)

< 0.001% @ 1kHz

GAIN

+19dB

SIGNAL TO NOISE RATIO

110dB

CHANNEL SEPARATION

> 118dB

CHANNEL LEFT/RIGHT

Selectable swap

MONO/STEREO

Yes

ABSOLUTE PHASE

0°/180°

BOOSTER

3 adjustable levels (by-passable/off)

VOLUME

100 steps

REMOTE CONTROL

Included
IR receiver on front and back

ANALOGUE INPUTS

4x RCA unbalanced
4x XLR balanced

INPUT LEVEL

Typical 2Vrms – Max up to 5Vrms on RCA
Typical 2Vrms – Max up to 10Vrms on XLR

INPUT IMPEDANCE

100kΩ XLR & RCA

AUDIO OUTPUTS

2x RCA unbalanced
2x XLR balanced
1x TUBE-1012

OUTPUT LEVEL

Max up to 20Vrms on XLR & 10Vrms on RCA

OUTPUT IMPEDANCE

< 50Ω XLR & RCA

POWER SUPPLY

100-120V or 220-240V, 50/60Hz
Ultra Linear power supply with 3 transformers

POWER CONSUMPTION

max 30W

PSU INPUT

1 Input for external inductive power supply PSU-1250/1000

FUSE (220/240V)

1A F

FUSE (100/120V)

2A F

DIMENSIONS

430mm W | 135mm H | 375mm D

WEIGHT

Kg. 11 – net
Kg. 16 – boxed

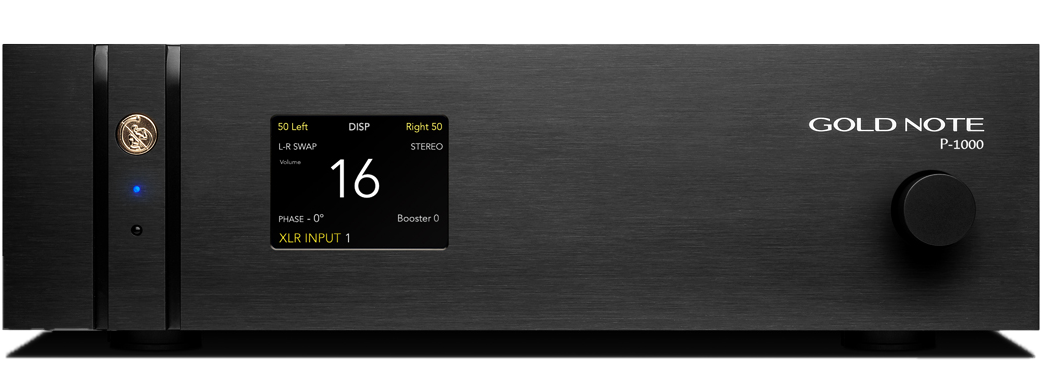

BLACK

Black anodised aluminium with a traditional brushed finish

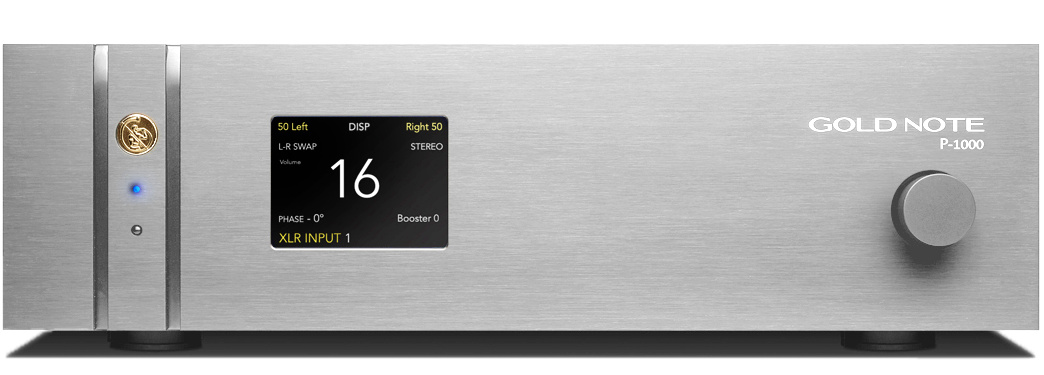

SILVER

Silver anodised aluminium with a traditional brushed finish

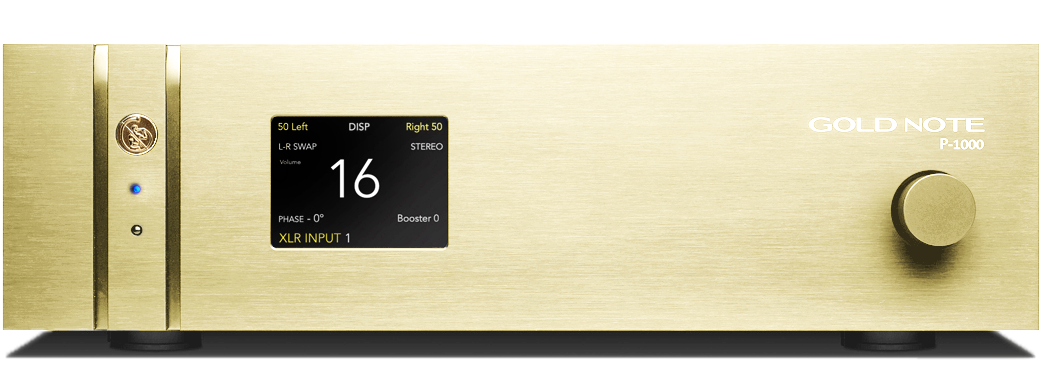

GOLD

Gold anodised aluminium with a traditional brushed finish

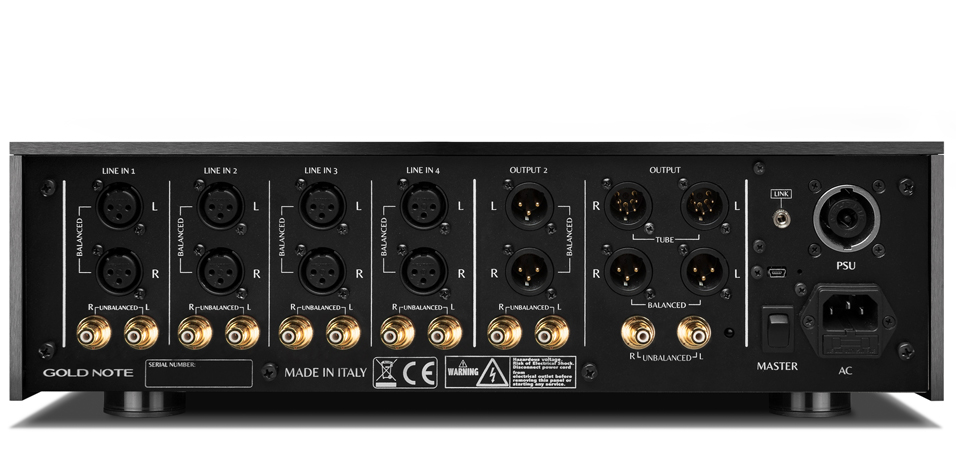

P-1000 rear

BOOSTER

The Booster is a feature designed to reproduce the lower range of frequencies with power and control. It works as a custom equalisation, increasing the gain around 50Hz to provide a richer and more full-bodied sound. The 50Hz frequency has been chosen since lower frequencies are more difficult to obtain with small speakers.

The Booster provides a richer and more full-bodied sound, for better realism and dynamic. It’s particularly useful in case of speakers that require more energy in the bass frequencies, for night-time listening at lower volumes, or even to achieve a more realistic headroom. The Booster is completely by-passed when set to OFF, applied to 50% when set to 1, applied to 100% when set to 2.

REMOTE CONTROL

Multifunctional remote control included

UPGRADES

VALVE OUTPUT STAGES

TUBE-1006: Class-A 6 Tubes output stages with Dual Mono/inductive tube power supply
TUBE-1012: Class-A 12 Tubes output stages with Dual Mono/inductive tube power supply

EXTERNAL POWER SUPPLY

PSU-1250: external inductive Dual-Mono power supply capable (300W)
PSU-1000: external inductive Dual-Mono power supply capable (200W)
